SPECIFICATIONS
Brand Name: AMOCAM
Connection Method: WireLess
Camera Sensor type: CMOS
Origin: Mainland China
Answering Mode: TELEPHONE
Display Screen Size(inch): 7
Display Screen Type: COLOR
Zone Input: None
Kit Configuration: One to One video doorphone
Access Control: Remote control
Type: intercom system
Waterproof: Yes
Material: aluminum alloy
Smart home platform: Tuya
IP Camera Interface: No
Samrt Home Interface: Yes
Installation: Wall Mounting
Resolution: 1080p
Connection Type: WireLess
Certification: RoHS
Power: 12V
Model Number: Q-356505
Sensor Size(Inch): 1/3
Camera: Color
Power: 100V-240V
Viewing Angle (°): 120
Doorbell: Yes
Technology: DIGITAL
Choice: yes
Home Video Intercom System, Never Miss Your Visitor
Wireless doorbell easily talks with visitors through the app, which supports IOS/Android smartphones and tablets. Support remote unlocking, monitoring, Two-way communication, video recording, etc. You can answer the door in your hand.
When visitors press the doorbell, your phone will receive the Tuya Smart APP notification which can be interconnected with a variety of monitoring devices, you can see and hear and communicate with anyone who at indoor or outdoor, even remote unlock via your smart phone in everywhere.
Phone is the Key:
Answer The Door In Your Hands
Get alerts on your phone when visitor press the doorbell, you can see, hear and speak to people(like courier) as if you are home, never miss any visitor.It is convenient for elder or people with reduced mobility to open the door.
Automatic Recording, Motion Detection:
1080P camera with 120º wide view angle, Visitors at the door can be seen clearly.
Camera built-in microphone and speaker, When visitors press the doorbell or motion detect is triggered, doorbell camera will Automatically record videos or snapshot pictures and save them in monitor micro SD card.
Rainproof and Night vision
IP65 waterproof design,work stable in rainy,cloudy,cold and snow day. Built with 1080p HD camera, anti-oxidation aluminium alloy front panel,Rainproof, Dustproof,and Anti-vandal. IR LED for better night vision.
7-inch full touch screen
With 1080P resolution, get sharper images and videos on the monitor and APP, Full touch screen easier operation and better user experience.
Language :
Supports Multi-language: English / 한국어 / Русский / Español / Chinese / / Türkçe / Čeština / بالعربية ..
Product Features:
Monitor:
Screen: 7 inch TFT-LCD touch screen
Resolution: 1024 x 680
Ring: 7-chord melody rings
Volume,color: Adjustable
Connection way: 4-wires/WIFI tuya solution
Panel Material: Acrylic/ABS cover
Installation: Surface mounting
Input voltage:AC 100-240V 50/60Hz
Working voltage:DC 14.5V, 1.0A
Size: 7.9×5.1×0.9 inch / 200x130x23 mm
Camera:
Horizontal resolution: 2MP 1080P
Image sensor:Colorful CMOS sensor
Sensor Size:1/4,Visual angle:120 degrees
IR Led: 6pcs, auto on/off
Panel Material: Aluminum Alloy/Acrylic
Installation: Surface mounting
Simple 4 - wire connection
Power: from indoor monitor
Work with all 12V electronic locks
Size: 4.9x2.2x2 inch / 125x56x51 mm
Easy to Install
Please note: the wifi video intercom system not mean it's don't need any cable. The monitor support WIFI network,but the indoor monitor and doorbell is Wired Connect.
1. Use RVV-4 cable or Cat 5/6 ethernet cable, network cable to connect the doorbell to the Monitor (terminal cables are included).
In addition to the wired connection between the doorbell camera and the monitor of a traditional video intercom doorbell system, new wireless connection function has been added. The monitor has a built-in antenna, which can be connected with wifi through wireless signal. The cell phone can control the doorbell system remotely through TUYA/Smart life APP.
wiring diagram:
2. Monitor configuration WiFi, just open the configuration menu, select 2.4G WiFi, enter the WiFi password to connect.

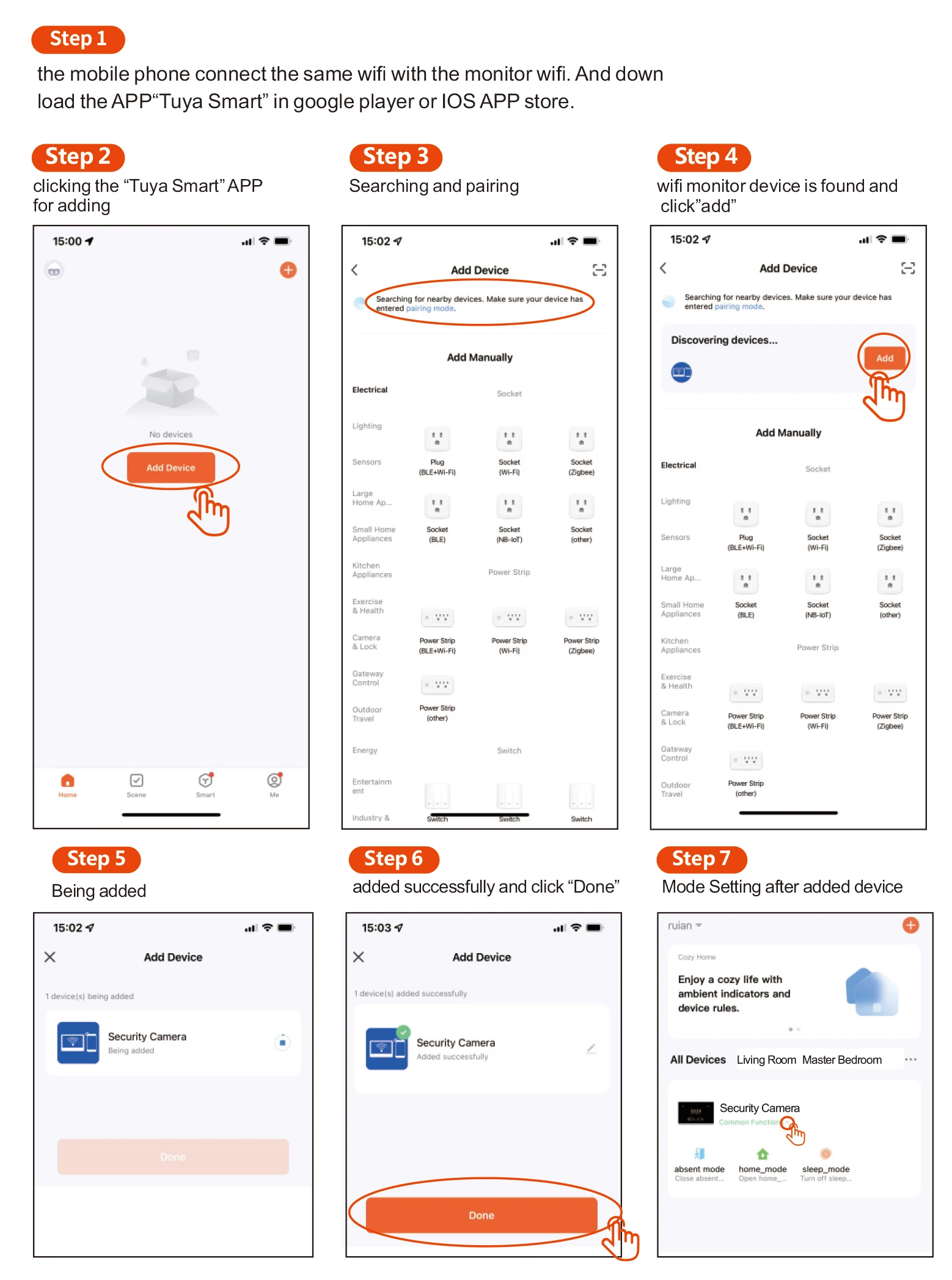

3. Once the monitor is configured with WiFi, the phone downloads the free Tuya Smart/Smart Life APP, which automatically searches for the device and clicks Add. It can also be added by scanning the code on the monitor.
Packing includes:
- 1 x Outdoor camera
- 1 x Indoor monitor
- 1 x Power supply
- 1 x 32G Micro SD card
- 2 x 4-core short wire
- 1 x 3-core short wire
- 1 x Bag screws
- 1 x User manual
FAQ:
Q: Can Doorbell be installed downstairs, and does it affect the WIFI signal of 3 cells?
A: Doorbell can be installed downstairs or outside the fence gate, they are connected by wired connection, don't worry about the network signal.
Q: Does doorbell need batteries?
A: No, it is powered by the monitor and the doorbell is wired to the monitor.
Q：What is the connection between Doobell and Monitor?
A: You only need a normal 4-core cable or CAT5/6 cable according to the connection distance.
Q: How long distance does this Doobell and Monitor?
A: It depends on the diameter and quality of the cable you use. Generally, within 100 meters.
Q: Can iphone or ipad be connected with doobell system?
A: Yes, you just need to download Tuya Smart APP in APP Store for free.
Q：Can the doorbell use TUYA APP and Smart Life APP?
A: Yes, it supports Tuya Smart/Smart Life APP.
Q: Can the doorbell system store videos? Is there a member fee?
A: The system includes 32G Micro SD card. It's free, No subscription required.
Q: Does the doorbell system come with motion detection?
A: Yes. Which will save the video to the SD card (32G card is included).
Q: Does the doorbell use different ringtones?
A: Yes, we provide 6 different ringtones for you to choose, and you can also customize your own ringtones with the SD card.
Q: Can doorbell see the door at night?
A: Yes, the doorbell system supports infrared night vision, used at night.
Q: Is the screen always on?
A: No. The screen will turn off in standby mode to protect it.
Q: Does the doorbell system support electronic locks?
A: Yes, this supports all electronic locks, either no or NC. (the lock need purchased separately)
Q: Does the doorbell system support remote unlocking by cell phone?
A: Yes, you can unlock the door remotely by cell phone Tuya APP.
Q: Does the doorbell system support Russian language?
A: Yes, you can choose different languages in the screen.
